AUTOMATIC WATER METER

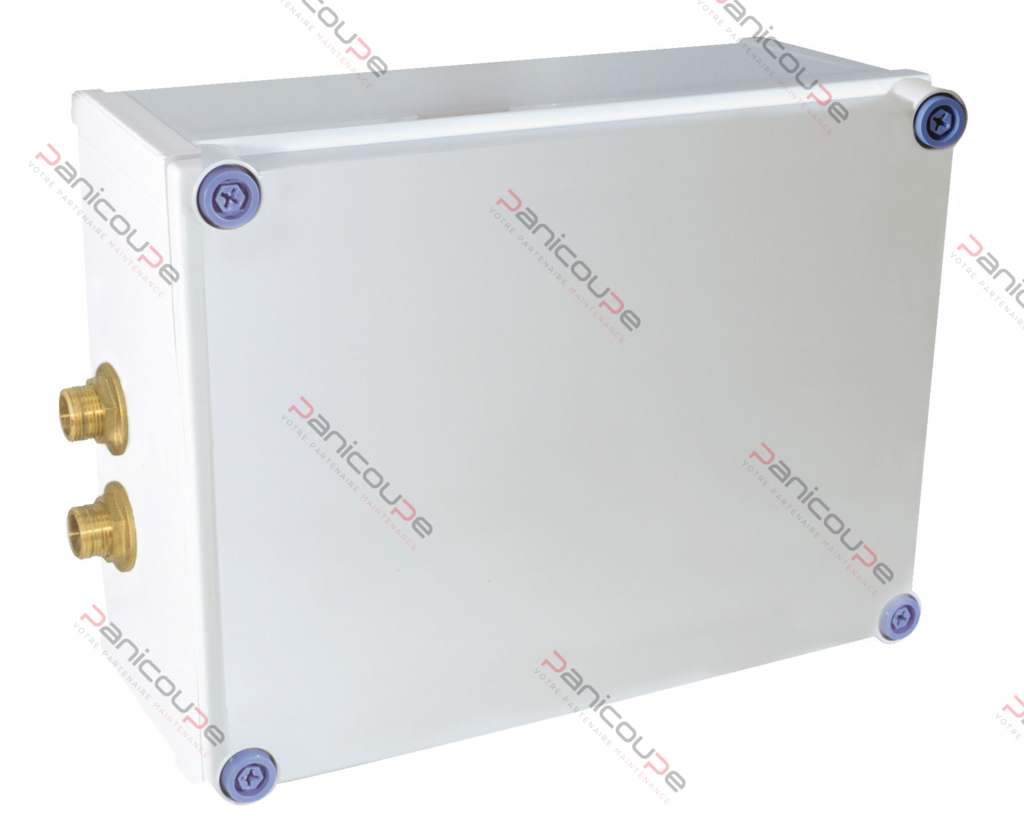

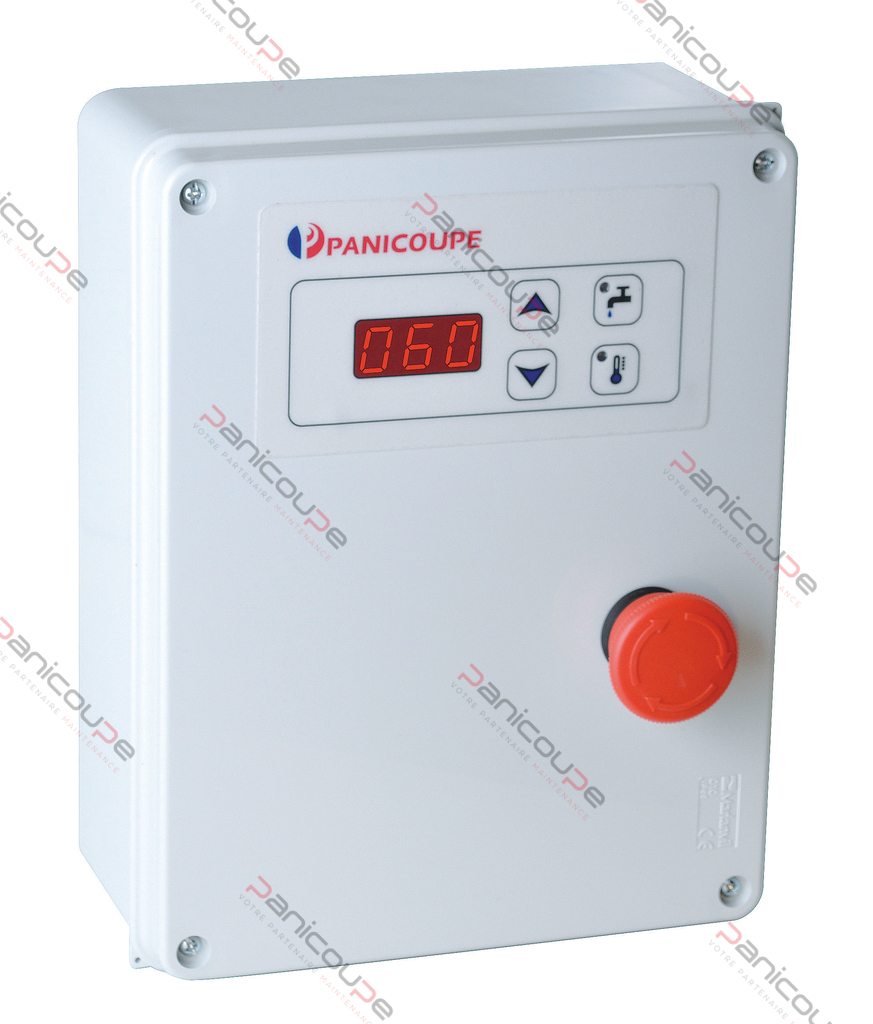

Composed of 2 IP65 ABS enclosures insensitive to corrosion- Separate electronic and hydraulic control panel to avoid condensation on the components- Connection between the boxes by means of cables and cable glands supplied- Display of metering during the cycle- Emergency shutdown button- 3/4″; male water inlet and outlet- Output 230 V 16 A for pump control- Metering by the litre from 0 to 999 litres- Metering unit: 1 litre- Nominal flow rate: 1500 l/h Max- water temperature 90 °C- Temperature adjustment to the nearest degree- Water mixing by means of integrated motorised 3-way valves controlled by a regulation with neutral zone- The dosing unit must be equipped with a pump (type MULTI-H 203) or work on the mains pressure- 230 V ac power supply Dimensions control box: 195 x 250 x 95 mm Dimensions hydraulic box: 400 x 300 x 170 mm
