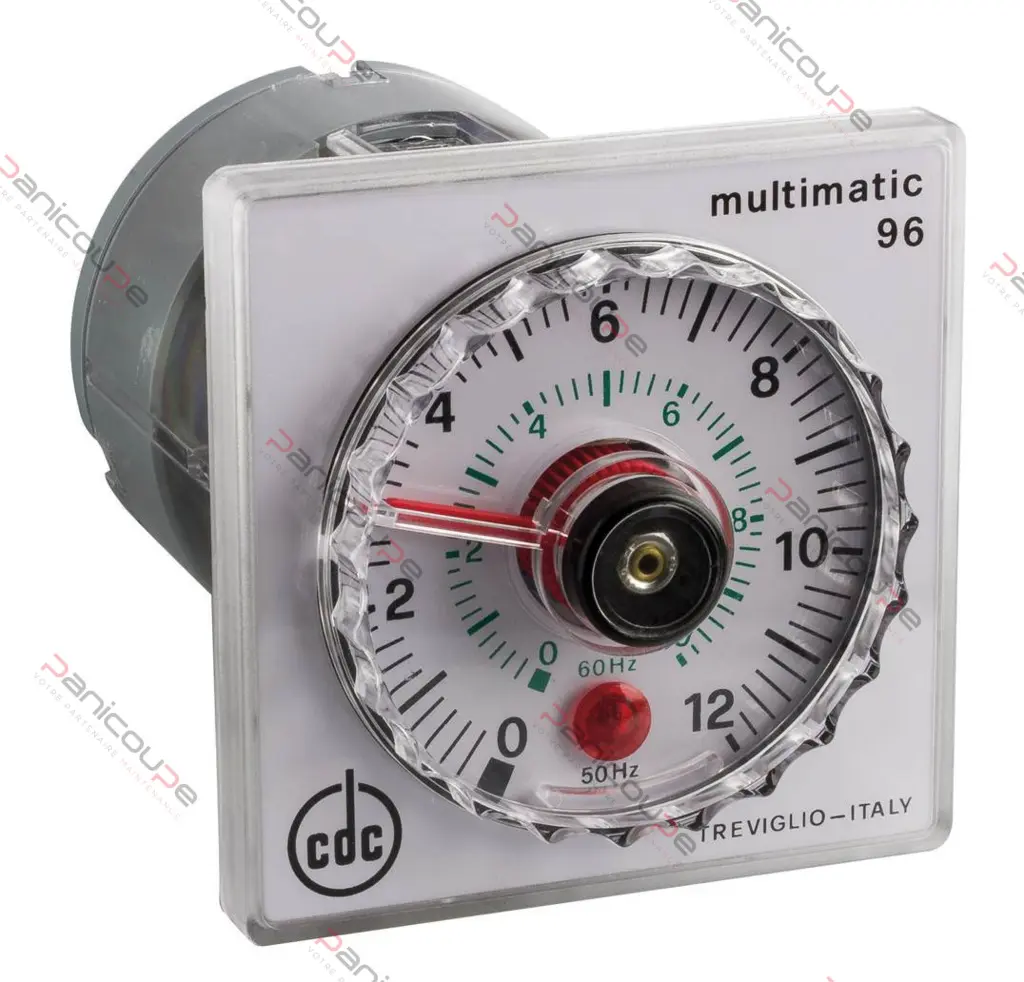

Electromechanical timer with manual reset- Façade 96 x 96 mm- Depth behind dial: 96 mm Case Ø 78 mm for assembly in cutout Ø 80 mm (can also replace square timers 96 x 96 mm) Voltage indicator light- 1 instant relay and 2 delayed relays- (6 A/250V) The pointer drops to indicate the down-count- Dial graduated from 0 to 12 and 0 to 10 Time range in 50 Hz: 12 sec/120 sec/ 12 mn/120 mn/12 h Time range in 60 Hz: 10 sec/ 100 sec/ 10 mn/100 mn/10 h Connection by screw-on terminal block (not requiring base)
M96/709B12/24V : Voltage 24 V
M96/709B12/230V : Voltage 230 V-
