CDC TY94 TIMER

TIMER FORMAT 72 X 72
Multifunction : S/T/U/V/Ke/Am/A/C with START and RESET commands
ON/OFF memory – Graduated dialfrom 0 to 0,30
Bar LED Display + 3 digits display
relay status LED indicators. End timing buzzer ON/OFF
output relay 16A/250 V. Time range 30 sec/3 min/30 min/3 h.

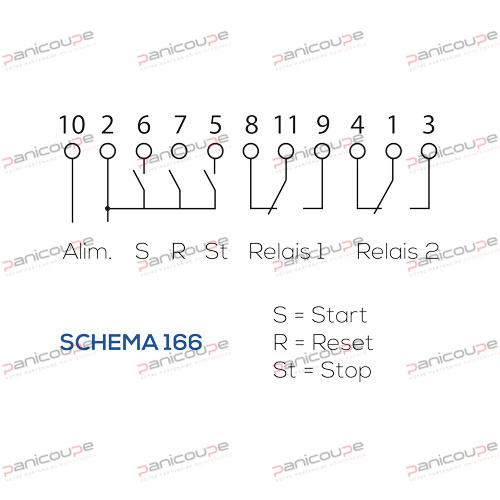

junction for undecal base
Power supply 24 V ac/dc.
Façade 72 x 72 – Dimensions 72 x 72 x 91 mm (with base)
replace TY92/162B3/24V model
