EV6421M CONTROLLER MODEL

1 setpoint- Display in °C or °F- Hot or cold operation 2 types of power supply 230 Vac or 12-24 Vac/dc- Possibility to set a minimum and maximum point in the temperature range Multi sensor input- 1 relay output- 3-digit display Case for mounting on DIN rail Size 53 x 98 mm Depth 58 mm

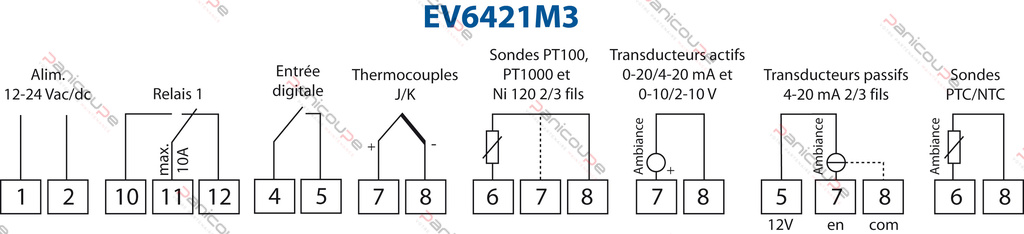

Ref EV6421M3: SENSOR inputs (not supplied) – Multi-SENSOR: TCJ- TCK- PT100 2 et 3 fils- PT1000 2 et 3 fils- 4-20 mA, 0-20 mA, 2-10 V, 0-10 V, PTC, NTC, NI120 2 et 3 fils – Voltage 12-24 Vac/dc
Réf EV6421M7: SENSOR inputs (not supplied) – Multi-SENSOR: TCJ- TCK- PT100 2 and 3 wires- PT1000 2 and 3 wires- 4-20 mA, 0-20 mA, 2-10 V, 0-10 V, PTC, NTC, NI120 2 et and 3 wires – Voltage 230 Vac
