2 setpoints (2 independent setpoints or neutral zone) – Display in ° C or ° F – Hot or cold operation – 2 relay outputs – 4-digit display Front panel 33-5 x 75 mm – Depth 81 mm – Removable terminal block

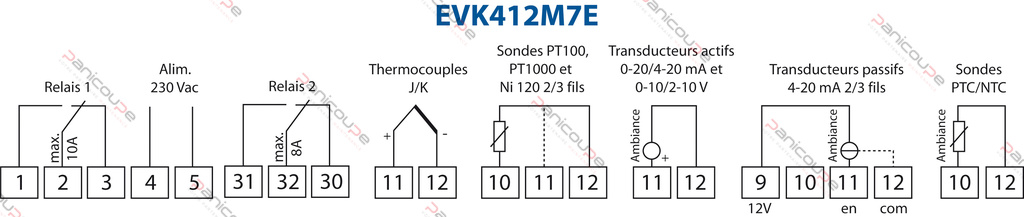

Ref – EVK412M7E: “MultiSENSOR” SENSOR input: TCJ- TCK- PT100 2 and 3 wires – PT1000 2 and 3 wires – 4-20 mA, 0-20 mA, 2-10 V, 0-10 V, PTC, NTC, NI120 2 and 3 wires (not supplied)”; – Voltage 230 Vac

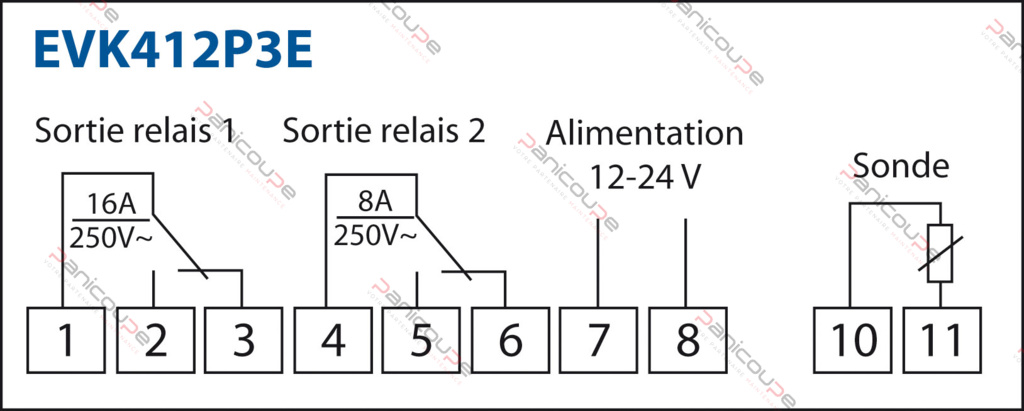

Ref EVK412P3E: ***** CANCELLED ***** Replaced by EV3402P3

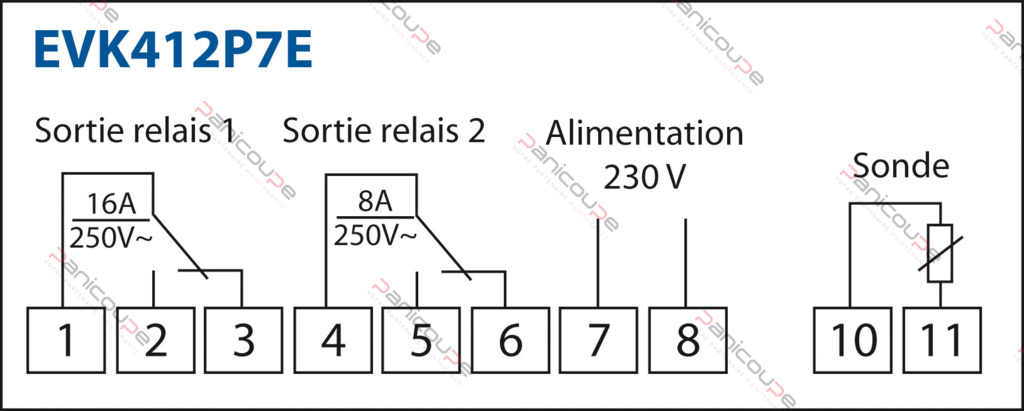

Ref- EVK412P7E: ***** CANCELLED ***** Replaced by EV3412M9

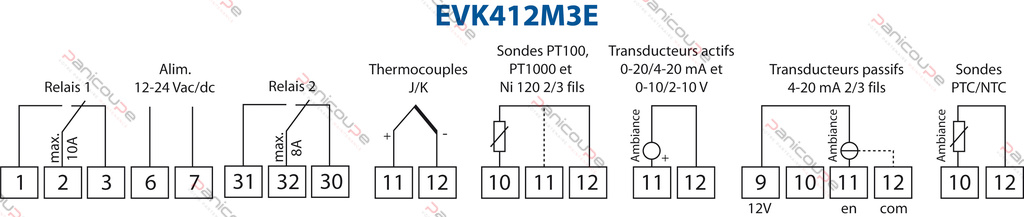

Ref EVK412M3E: ***** CANCELLED ***** Replaced by EV3412M3
