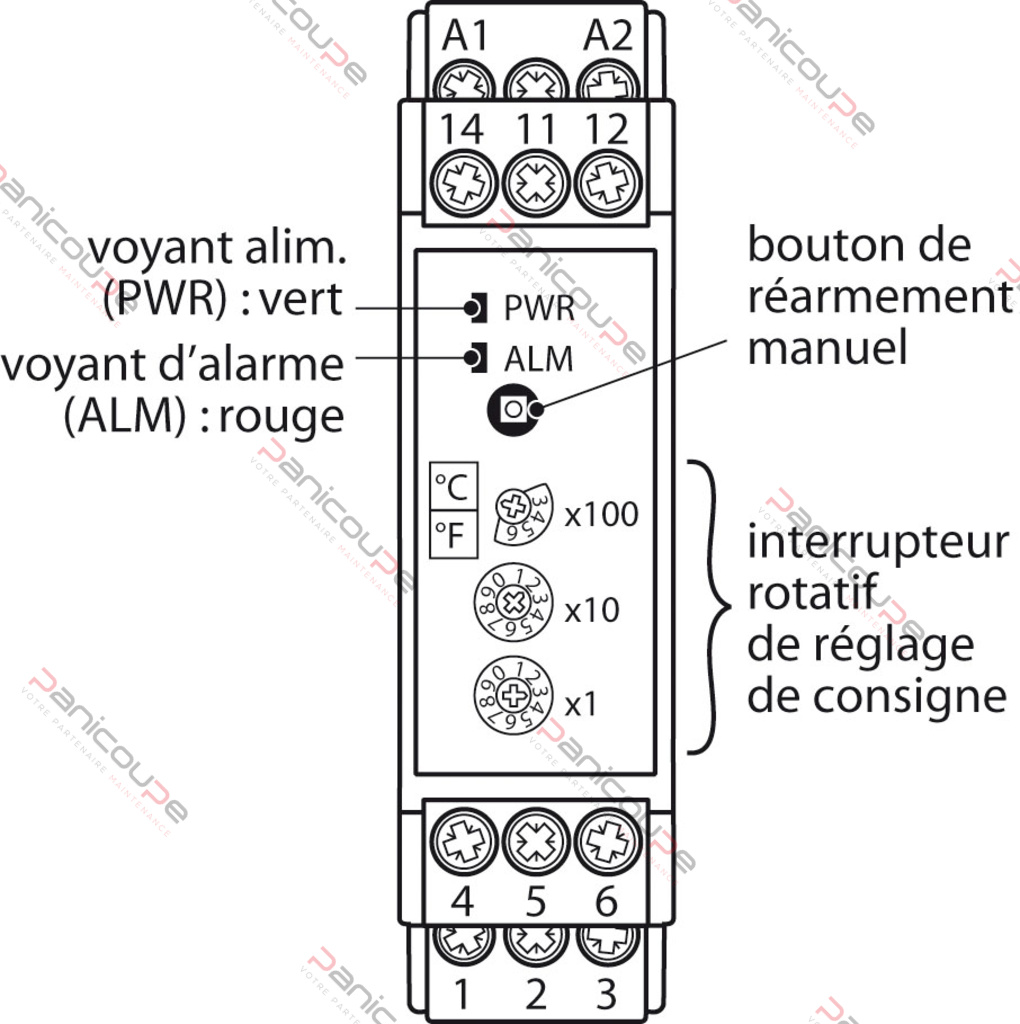

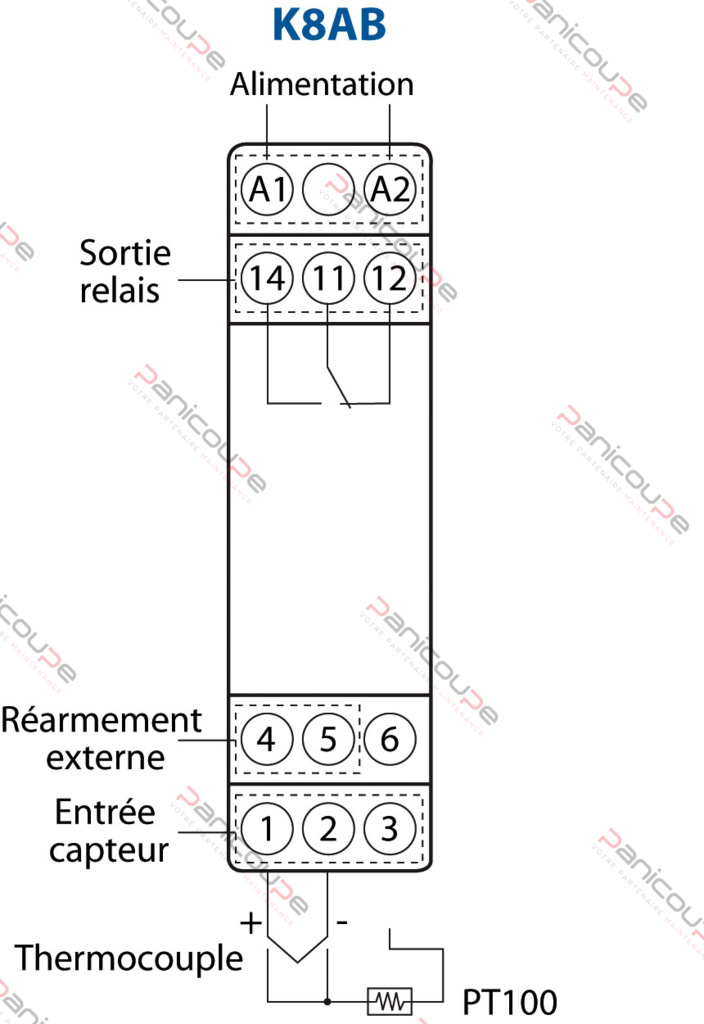

Safety thermostat with manual reset button on the front panel (possibility of connecting a remote external push-button) Disengageable manual reset for use in conventional regulation- Parameter selection by DIP switches: • °C or °F •Low or high alarm • Reset with or without • SENSOR type (not supplied) Power supply 100 to 240 Vac- Output 1 changeover relay 3A/250 V DIN rail mounting- Dimensions: 90 x 100 x 22 mm Screw terminal connections
Ref: K8ABTH11S230 – SENSOR inputs TCJ/TCK/PT100 – Temp- range 0 to 399 °C – Adjustment in 1°C
Ref: K8ABTH12S230 – SENSOR inputs TCJ/TCK/TCS – Temp- range 0 to 1700 °C – Adjustment in 10 °C
UNIVERSAL SAFETY THERMOSTAT
| SKU: | K8AB | Brands: | OMRON |
| Weight | 0.4 kg | Reference | K8ABTH11S230, K8ABTH12S230 |
You must log in to view prices.
Additional information
| Weight | 0,4 kg |
|---|---|
| Reference |
