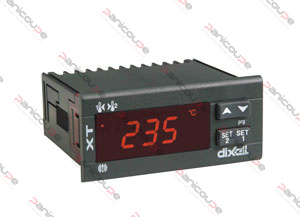

XT110C 12V DIGITAL CONTROLLER

Configurable with 1 on/off stage

SKU: XT110C-5H0AU Brands: DIXELL
Weight 0.5 kg

You must log in to view prices.

• 3 digit display, decimal point
• Probe inputs 4-20 mA, 0-1 V, 0-10 V
• 1st stage no 8A/nc 5A relay outputs
• Digital input: present
• Precision: Better than 1% at full scale
• Case: Self-extinguishing ABS
• Frontal protection: IP 65 with seal
• Type of display: Red LED (height 13 mm)
• Storage: EEPROM memory
• Operating temperature range 0°/60°C
• Storage temperature range -30°/85°C
• Relative humidity: 20-85%
• Resolution 0.1 °C or 1 °F
• Screw-on terminal block for wires <2.5mm² • 230 V ac power supply

Additional information

Weight 0,5 kg
